Kwik Performance Inc.  |  SKU: K10355

LS Low Mount AC Bracket - Corvette (97-13) / LSA supercharged (2009-15) - K10355

$247.00 USD
Shipping calculated at checkout.

Description

LS Low-Mount AC bracket for Corvette (1997-2013) crank pulley and water pump spacing.*

This bracket mounts the “mini” Sanden SD7B10 (7176) compressor in the stock AC location. The “mini” compressor is shorter than the stock compressor. This allows clearance for most aftermarket motor mount adaptors that locate the motor in “stock” position.

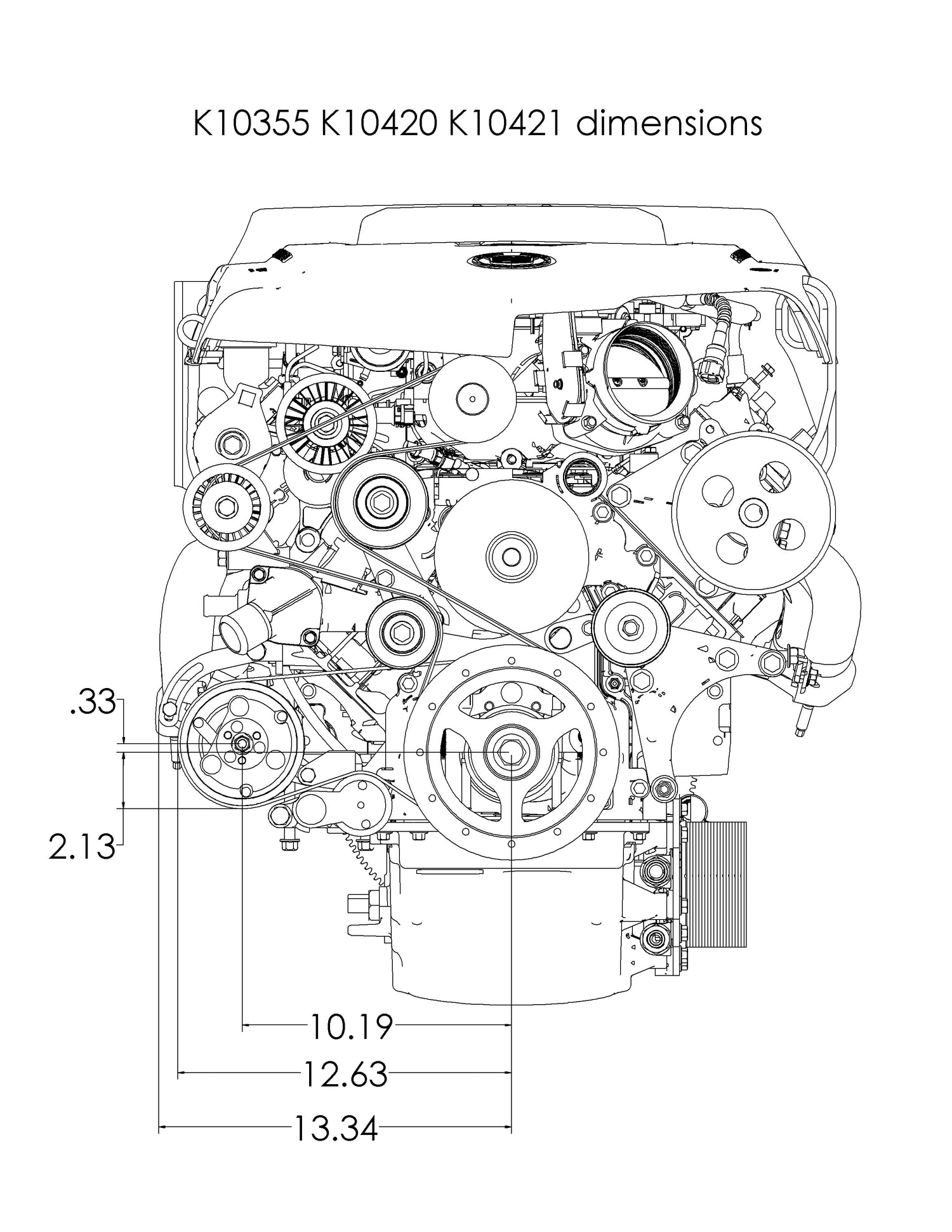

Our overall width is just 12.5” from the center of the engine to the outer edge of the compressor. This also has an advantage over the stock compressor for frame / crossmember clearance. May not work with Holley Gen 1 or 2 Camaro engine mounts or slotted, adjustable style mounts.

This is a great solution for LSA/Supercharged motors that do not have space to mount bracketry on the passenger side head.

What driver’s side bracket works with this AC bracket?

Teams up perfectly with our wide-mount alternator/power-steering bracket K10166.

Works with your GM alternator/power-steering bracket: Corvette (1999-2013), Cadillac CTS-V (2004-07), Cadillac CTS-V (2009-15 LSA), Camaro ZL-1 (2012-15 LSA), Pontiac G8 (2009), Chevrolet SS (2013-17), Caprice PPV (2009-17), Holden Commodore (2009-17).

    What's Included / Other requirements

    What's included:

    Bracket made of welded steel and powder coated

    All zinc coated fasteners included

    Automatic spring-style belt tensioner

    Belt

    What else is required to complete the installation:

    GM LS Gen 3 or 4 engine with Corvette (1997-2013) harmonic balancer and water pump (or equivalent)

    Sanden SD7B10 7176 “mini” AC compressor (Kwik Performance PN 10266-01).

    *Other engines with Corvette belt
    spacing include:

    Most Chevrolet “crate” engines

    Cadillac CTS-V (2004-07)

    Cadillac CTS-V (2009-15 LSA)

    Camaro ZL-1 (2012-15 LSA)

    Pontiac G8 (2009)

    Chevrolet SS (2013-17)

    Caprice PPV (2009-17)

    Holden Commodore (2009-17)

    Installation Instructions

    LS Low Mount Installation Instructions

    Gates Belt Chart (Part number and length)

    FAQs

    Why you should use a Kwik Performance product:

    Properly engineered using OEM reference drawings

    Computer tested with FEA (finite element analysis) software

    Field tested on shop test engines and in real-world test vehicles

    Backed by a no-hassle warranty and return policy

    Tech support before, during and after the sale

    Why use a genuine Sanden AC compressor?

    Many OEM AC compressors are a “variable displacement” design and don’t work well with older OEM or aftermarket AC systems

    The OEM compressors have a 4-groove pulley instead of the 6-groove needed when moving the compressor to a higher location

    Sanden is the aftermarket standard for AC compressors, recommended by most major AC manufacturers
