Kwik Performance Inc.  |  SKU: K10207

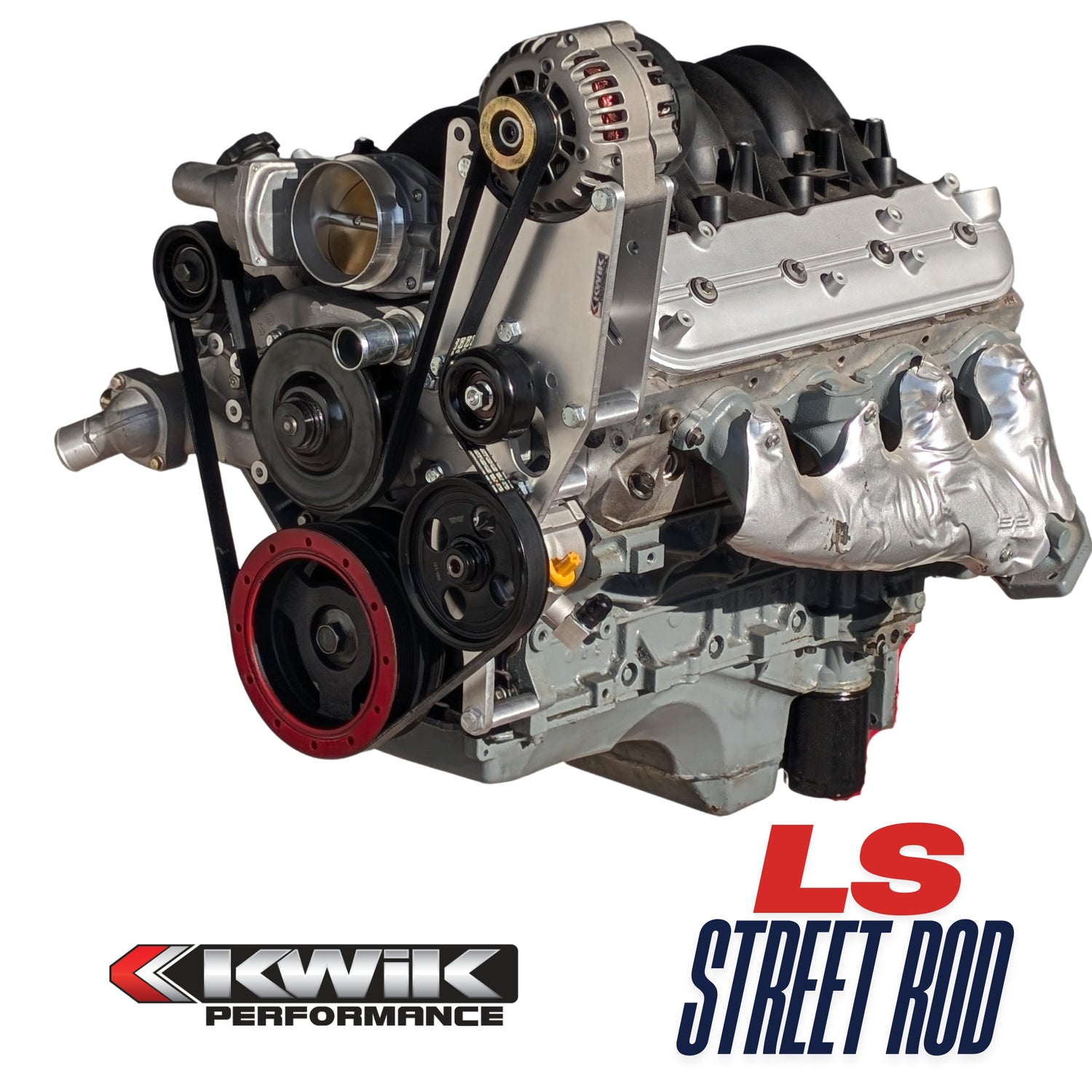

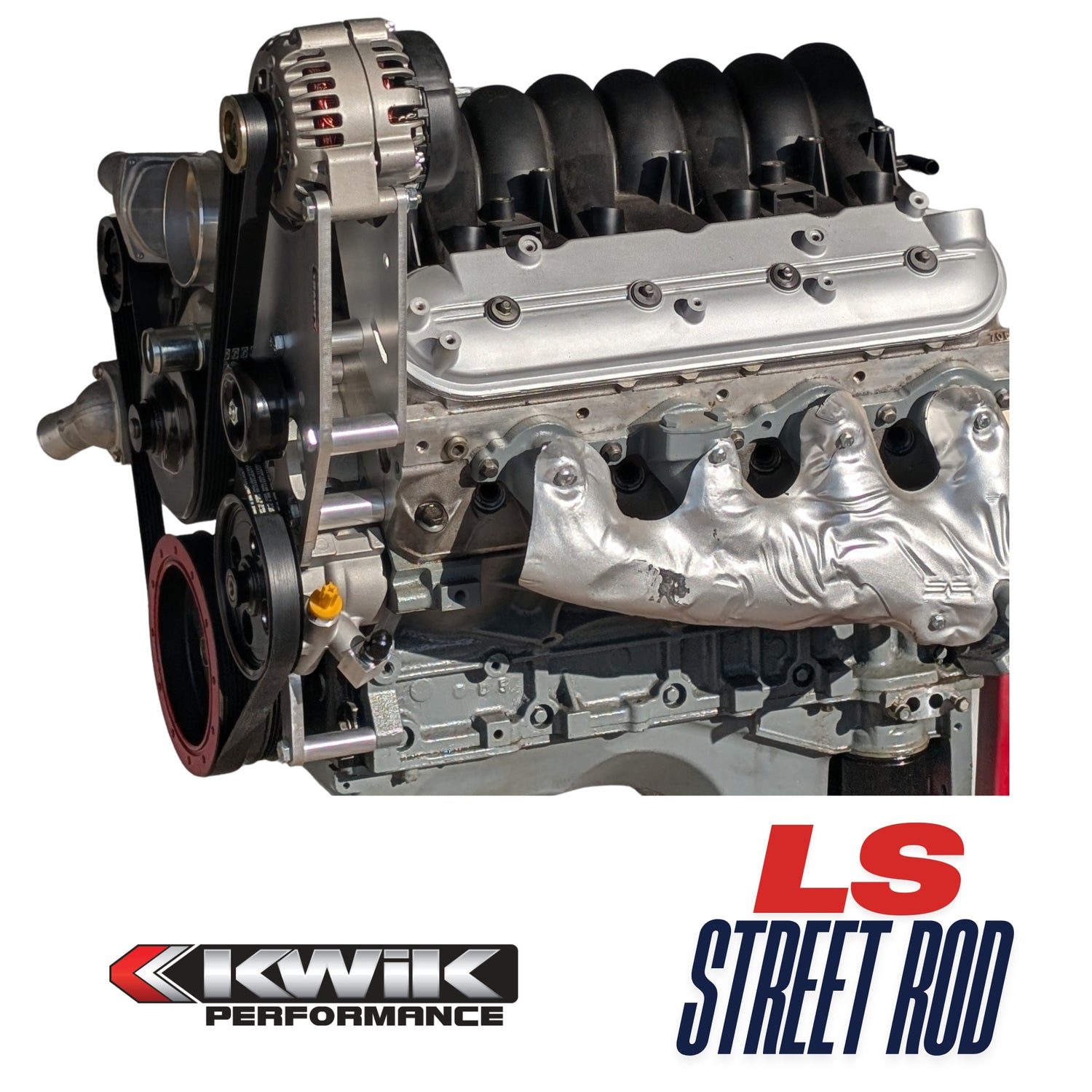

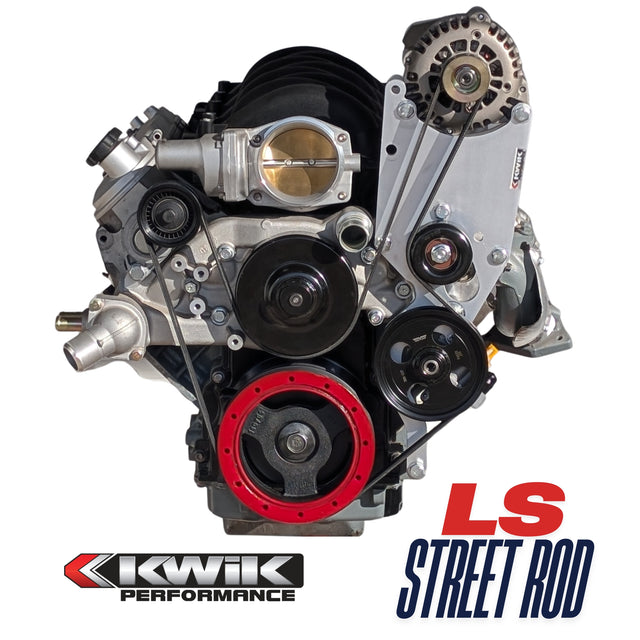

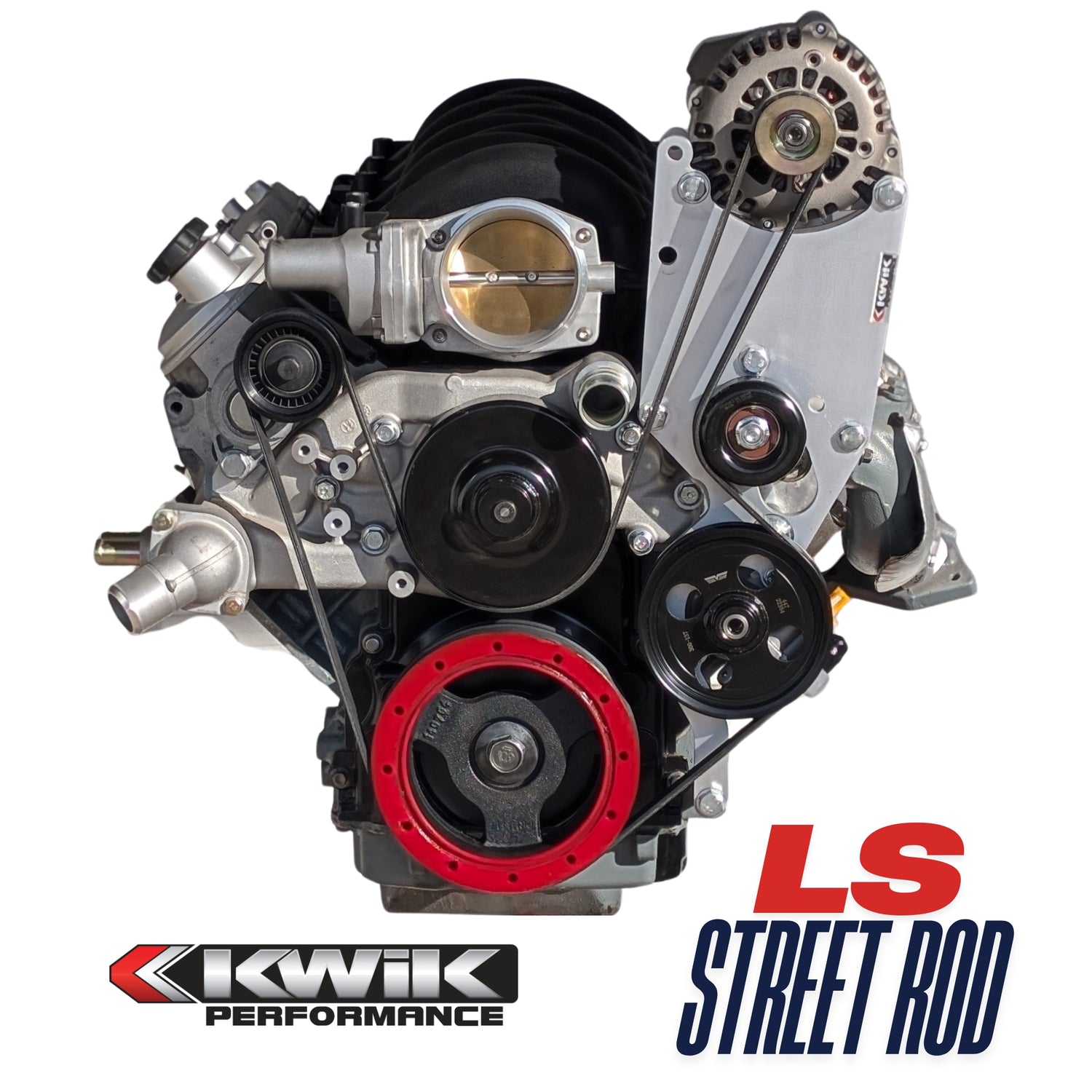

LS Street Rod Alt/PS Bracket - Corvette (97-13) - K10207

$319.00 USD
Shipping calculated at checkout.

Description

Narrow Street Rod Alt/PS relocation bracket system for LS engines with Corvette (1997-2013) crank pulley and water pump spacing.*

A perfect LS front serpentine solution for classic street rods and trucks (pre-1948).

This bracket system mounts the front accessories high and narrow for LS swap suitability.
This system can fit inside the hood sides of a 32 Ford!
Allows you to keep your Corvette balancer and water pump for maximum radiator clearance.
The Corvette crank/WP gives you the shortest LS configuration, allowing more room for electric fans.
The system is driven by one main 6-rib serpentine belt.

Dual bolt pattern for Alternator to fit:
  • Corvette Alternators (1997-2013)
  • Truck Alternators (1999-2013)
  • Camaro/GTO Alternators (1998-2002)
  • Camaro Alternators (2010-15)
  • DOES NOT fit Cadillac CTS-V / LSA Alternators
Power steering pump tucked and reclocked
  • Pump moved down and in for added frame / steering clearance
  • Pump clocked to give ease of access to pressure port
Multiple power steering pump options
  • Kwik Performance pump with 5.5” pulley: 10206-06
  • Corvette pump with 6.7” pulley
  • Camaro (98-02) pump with 6” pulley*
    • *Pulley must be pulled off shaft +/- 1/8” to line up properly
  • Camaro (2010-15) pump with 6” pulley*
    • *Call for Technical Advice
  • GTO (2005/2006)*
    • *Call for Technical Advice
    • *2004 GTO pump does not work

Mounts Factory OEM PS remote reservoir conveniently above the PS pump (optional)


 Exceeds OEM Corvette level of PS Pump belt wrap.


    *Other engines with Corvette belt spacing include:
    • Most Chevrolet “crate” engines
    • Cadillac CTS-V (2006-07, non-supercharged)
    • Pontiac G8 (2009)
    • Chevrolet SS (2013-17)
    • Caprice PPV (2009-17)
    • Holden Commodore (2009-17)

    Works with your OEM tensioner (mounted on water pump)

    What's Included / Other requirements

    What's included:

    Bracket made of 6061-T6 aircraft grade aluminum (brushed satin finish)

    All necessary spacers and zinc coated fasteners

    Idler Pulley

    What else is required to complete the installation:

    GM LS Gen 3 or 4 engine with Corvette (1997-2013) harmonic balancer and water pump (or equivalent)*

    Six-rib belt, See our included installation instructions for suggested lengths and Gates part numbers.

    Any LS alternator (except LSA / Cadillac CTS-V)

    View our PowerMaster alternator: (Kwik Performance PN 48206).

    Type 2 PS pump with threaded mounting holes

    DOES NOT work with type 2 PS pump with through hole mounting style

    Solution: Kwik Performance pump with 5.5” pulley: 10206-06

    Can also use any type 2 PS pump with threaded mounting holes.

    DOES NOT work with drive by wire throttle body (driver side mount)

    Solution: Passenger side mount drive by wire throttle body (Corvette)

    Solution: Top Mount drive by wire throttle body (truck)

    Either of these will work with your Corvette harness and gas pedal

    Installation Instructions

    LS Street Rod Alt/PS Instructions

    Gates Belt Chart (Part number and length)

    FAQs

    Why you should use a Kwik Performance product:

    Properly engineered using OEM reference drawings

    Computer tested with FEA (finite element analysis) software

    Field tested on shop test engines and in real-world test vehicles

    Backed by a no-hassle warranty and return policy

    Tech support before, during and after the sale
