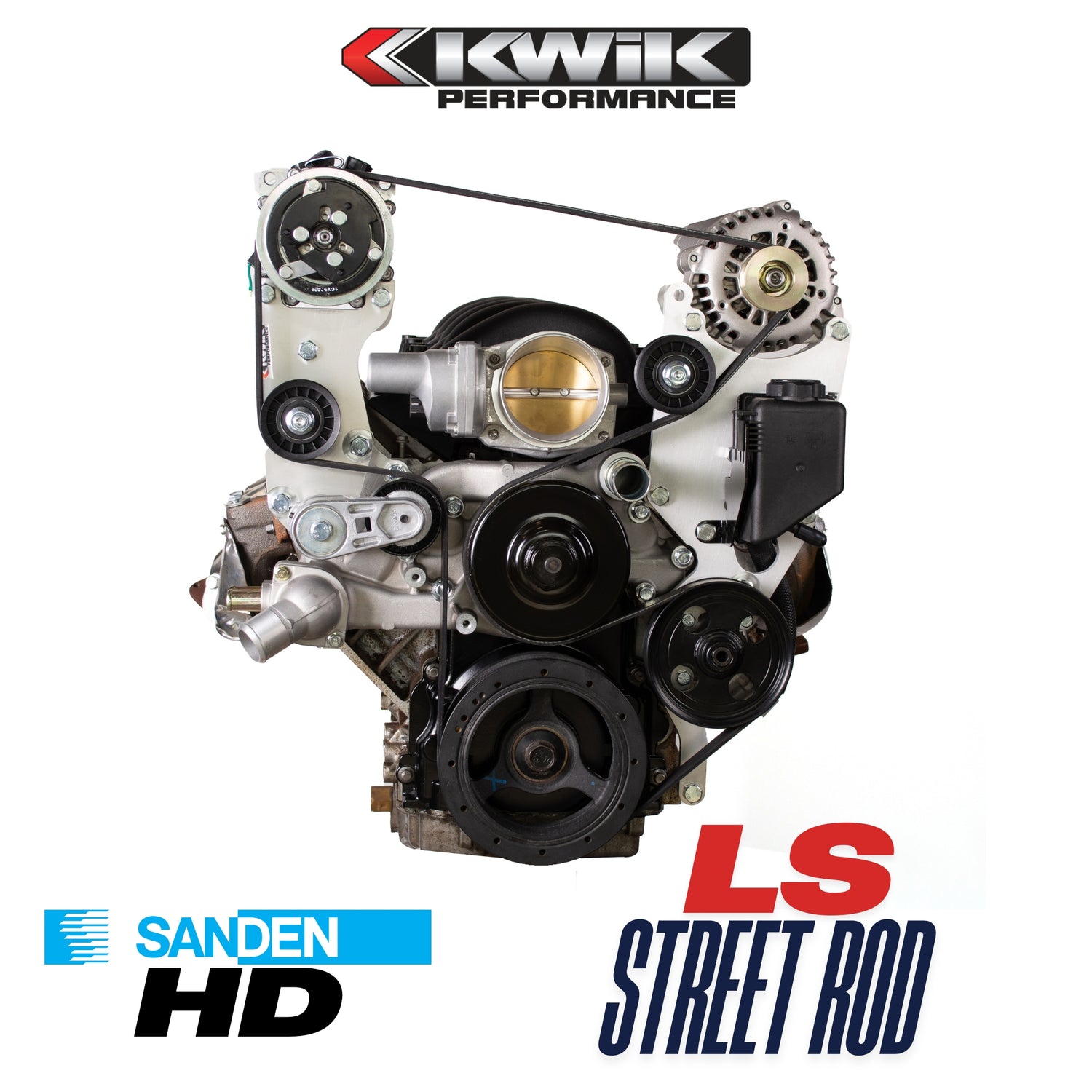

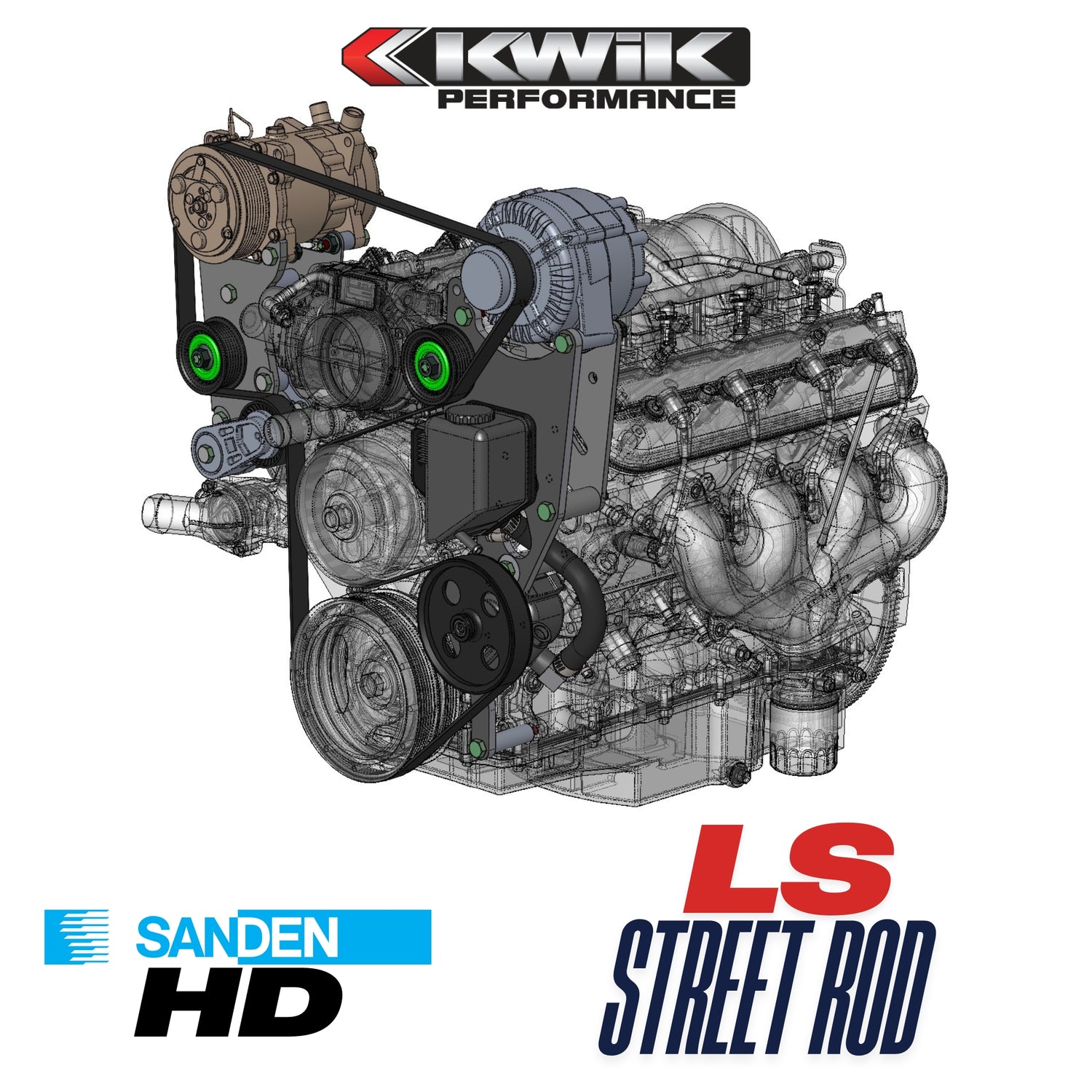

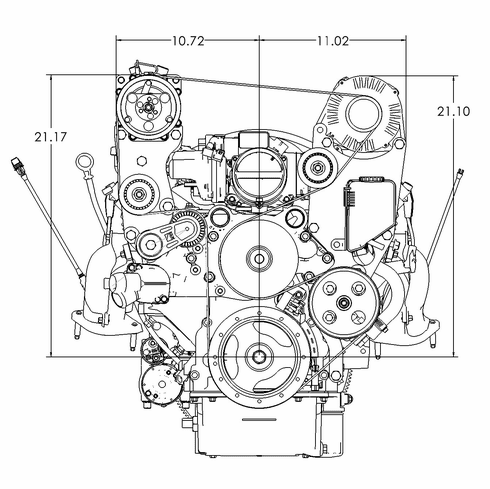

LS Street Rod AC-Alt/PS Bracket - Corvette (97-13) - K10232

What's
included:

Bracket made of 6061-T6 aircraft grade
aluminum (brushed satin finish)

All necessary spacers and zinc coated
fasteners

Automatic spring-style tensioner

Idler Pulley

What
else is required to complete the installation:

GM LS Gen 3 or 4 engine with Corvette
(1997-2013) harmonic balancer and water pump (or equivalent)*

Six-rib belt, See our included
installation instructions for suggested lengths and Gates part numbers. Alternator rating and PS pulley
diameters can change suggested lengths. Always check tensioner marks for
correct fitment.

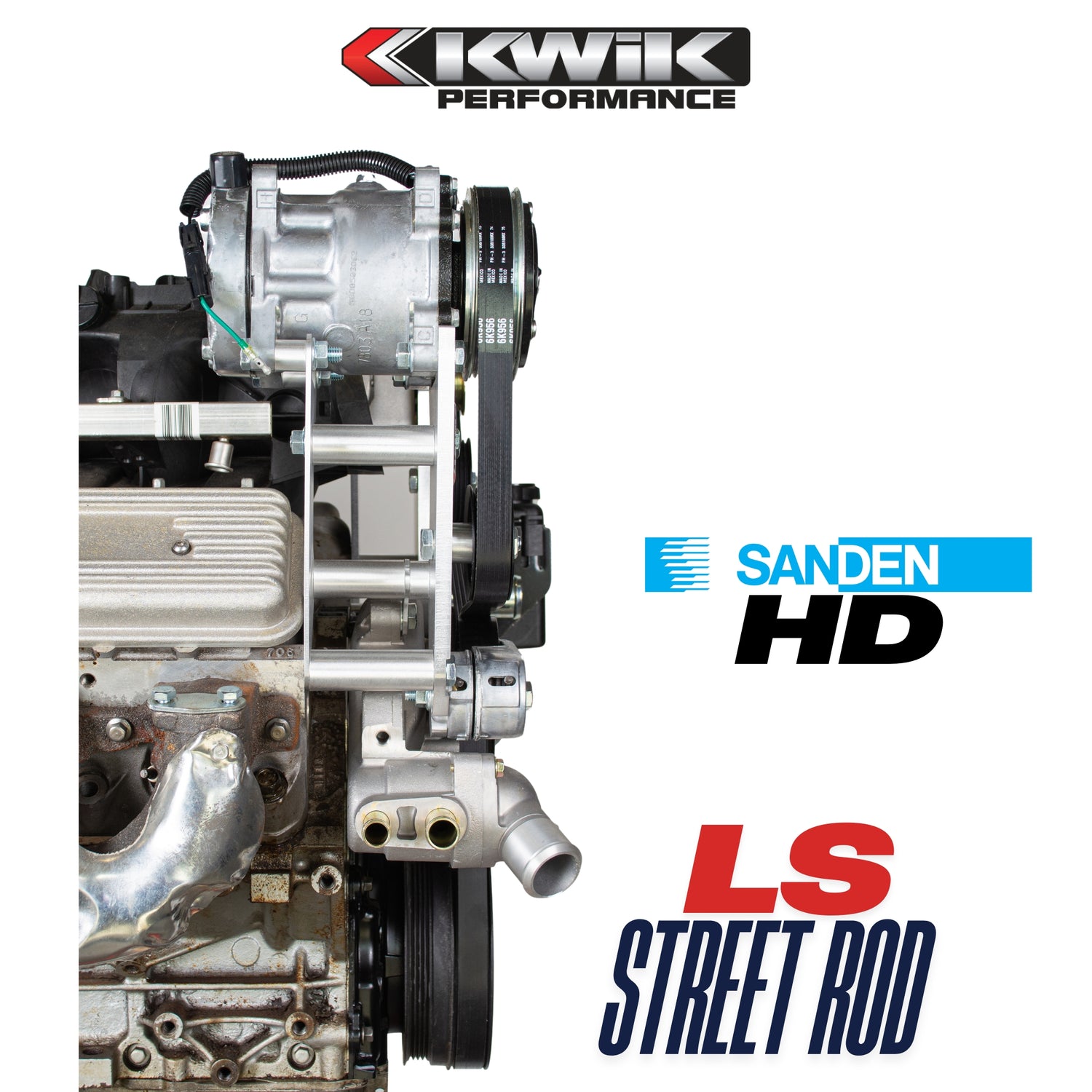

Sanden SD7H15 AC compressor. We recommend the 709 over the 508
compressor for smoother operation and slightly more cooling capacity. (Kwik Performance PN
10300-01).

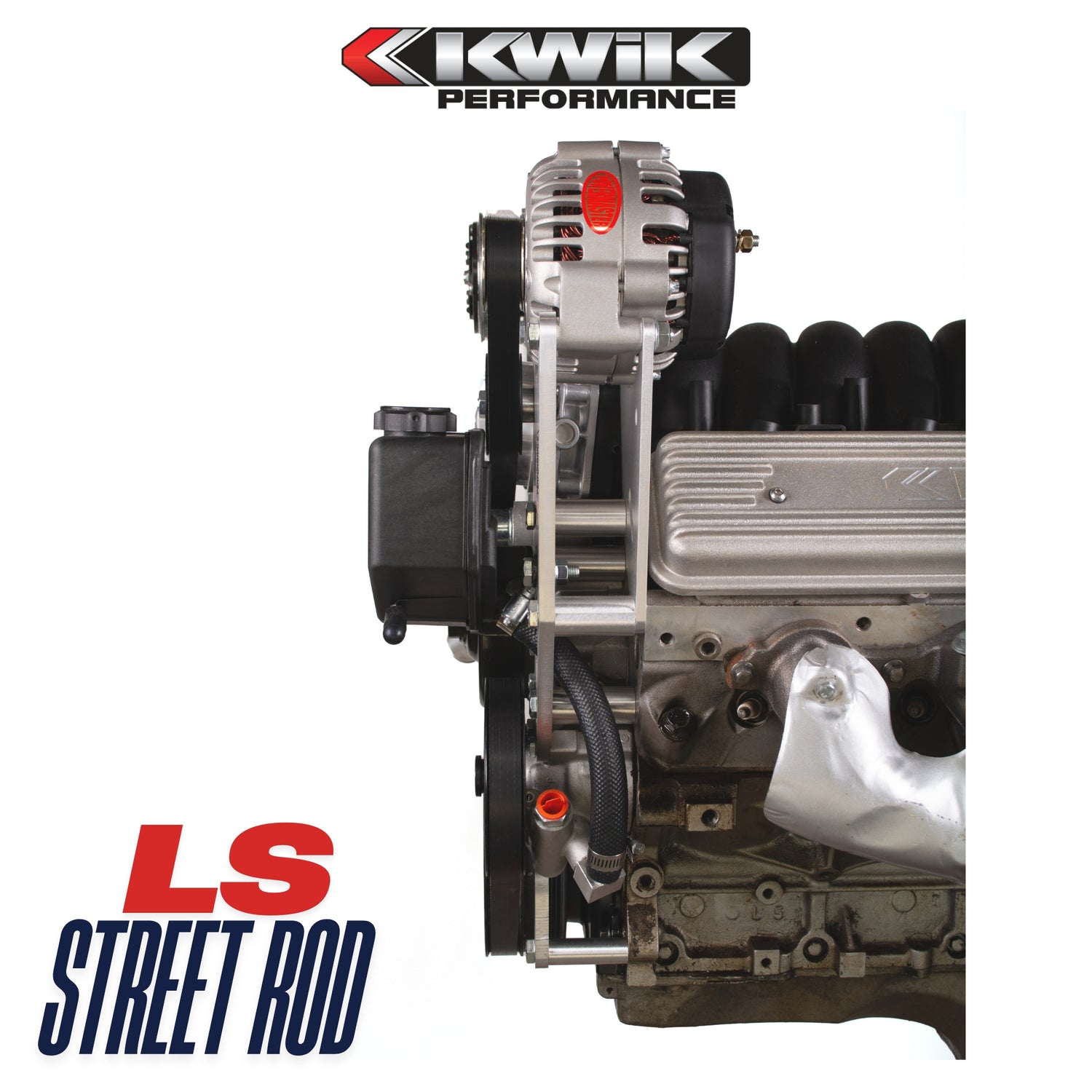

Any LS alternator (except LSA /
Cadillac CTS-V). Consider our PowerMaster alternator: (Kwik Performance PN
48206).

Type 2 PS pump with threaded mounting
holes. DOES NOT work with type 2 PS pump with
through hole mounting style. Solution: Kwik Performance pump with
5.5” pulley: 10206-06

DOES NOT work with driver side mounted
drive by wire throttle body

Solution: Passenger side mounted
(LS1/LS3) drive by wire throttle body

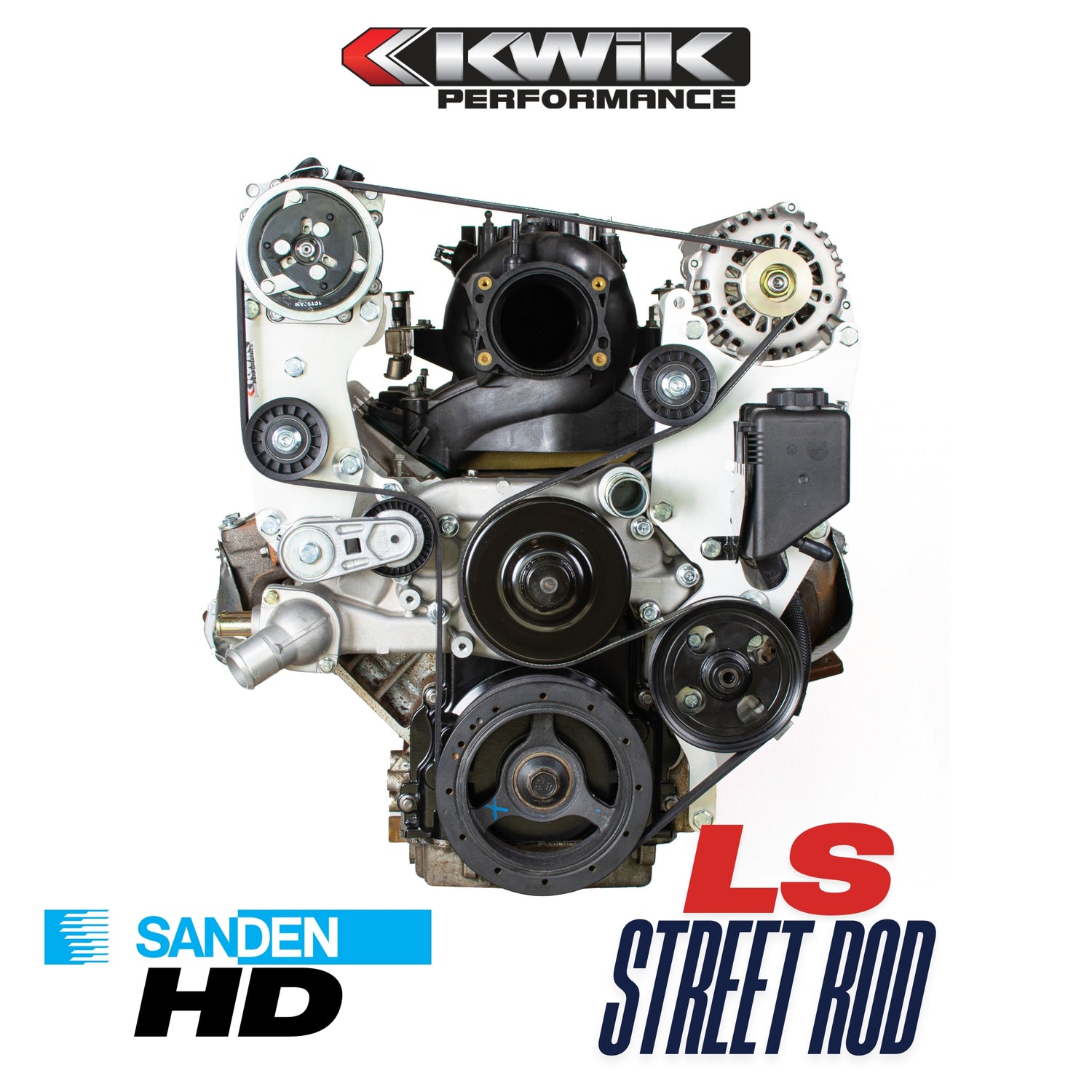

Solution: Top Mount drive by wire
throttle body (truck)

This will work with your Corvette
harness and gas pedal

*Other
engines with Corvette belt spacing include:

Most Chevrolet “crate” engines

Cadillac CTS-V (2006-07,
non-supercharged)

Pontiac G8 (2009)

Chevrolet SS (2013-17)

Caprice PPV (2009-17)

Holden Commodore (2009-17)

LS Street Rod AC Instructions

LS Street Rod Alt/PS Instructions

Gates Belt Chart (Part number and length)
