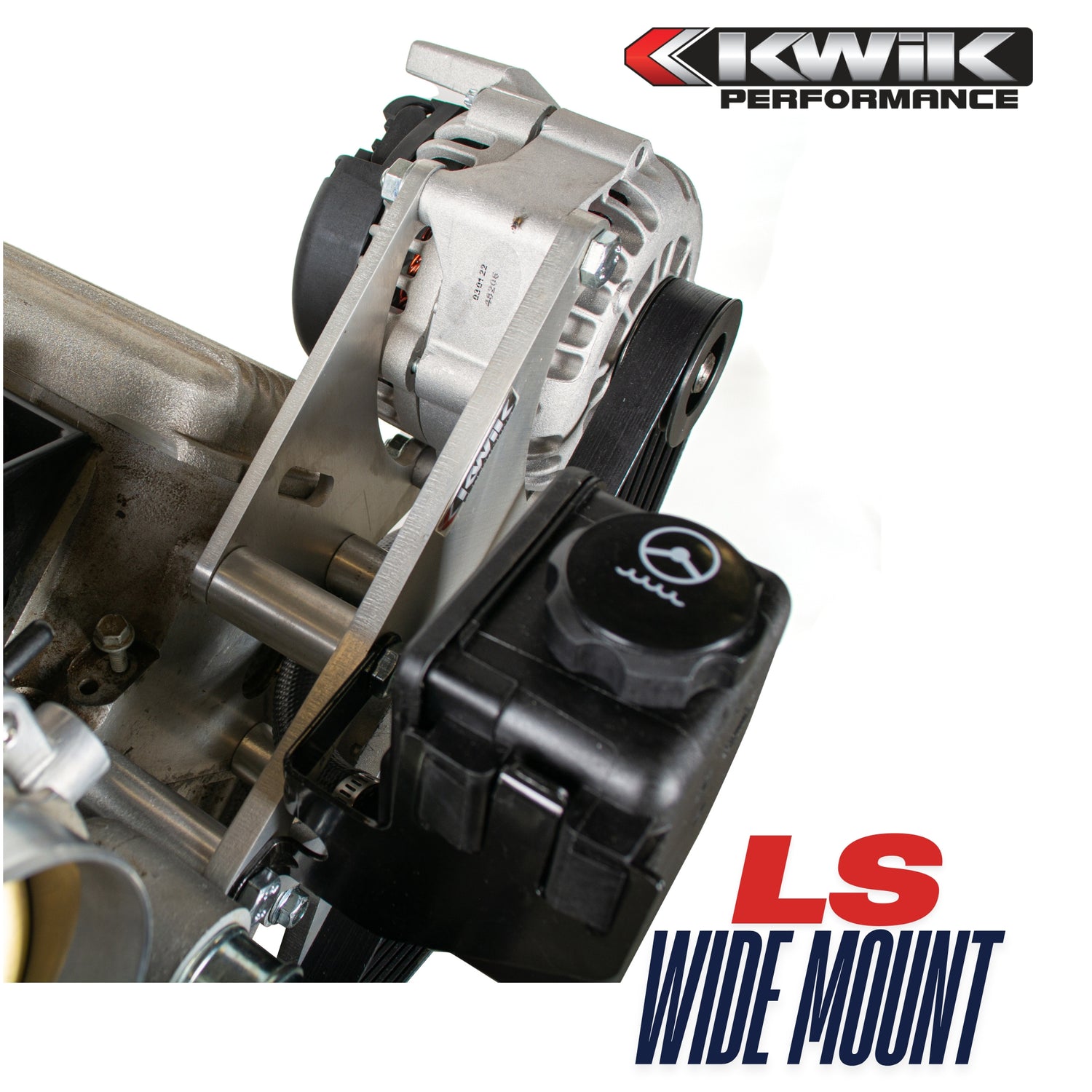

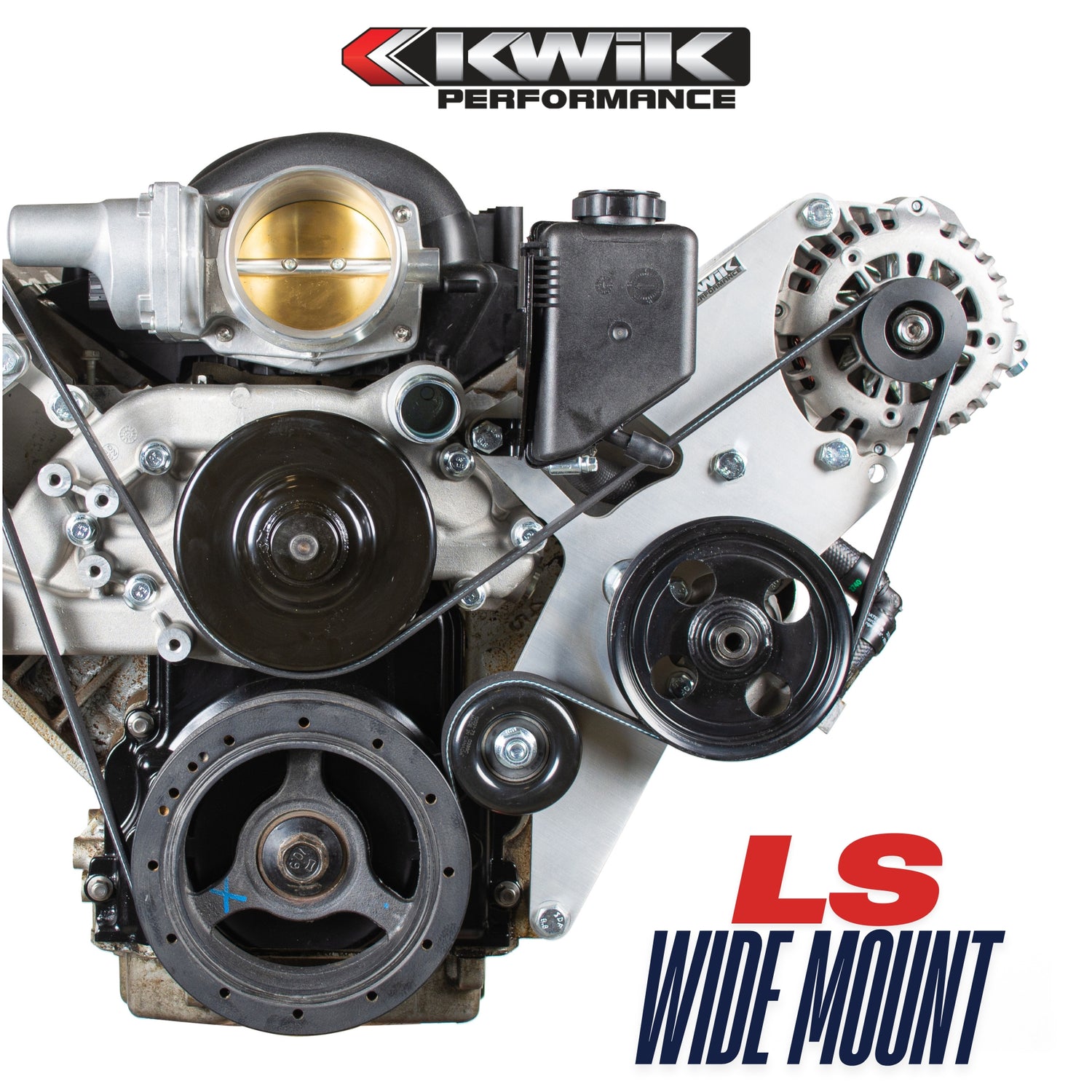

LS Wide Mount Alt/PS Bracket - Corvette (97-13) - K10166

Wide-Mount Alternator / Power Steering bracket for LS engines with Corvette (1997-2013) crank pulley and water pump spacing.*

This bracket mimics the factory OEM Corvette Alt/PS configuration with a couple of swap friendly improvements.

Dual bolt pattern for Alternator to fit:

• Corvette Alternators (1997-2013)
• Truck Alternators (1999-2013)
• Camaro/GTO Alternators (1998-2002)
• Camaro Alternators (2010-15)
• DOES NOT fit Cadillac CTS-V / LSA Alternators

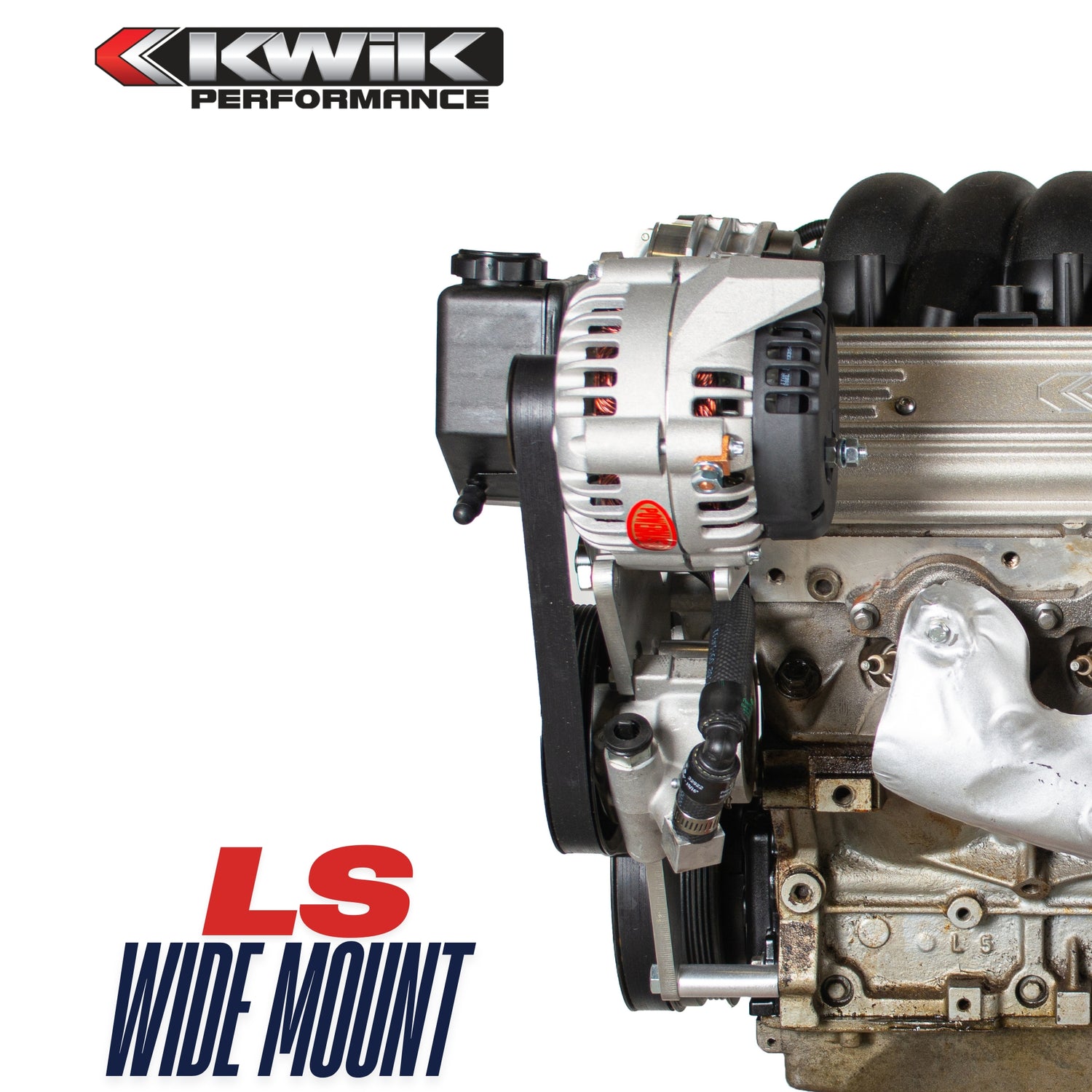

Power steering pump tucked and reclocked

• Pump moved up and in for added frame / steering clearance
• Pump reclocked to give ease of access to pressure port

Multiple power steering pump options

• Kwik Performance pump with 5.5” pulley: 10206-06
• Corvette pump with 6.7” pulley
• Camaro (98-02) pump with 6” pulley*
• *Pulley must be pulled off shaft +/- 1/8” to line up properly
• Camaro (2010-15) pump with 6” pulley*
• *Call for Technical Advice
• GTO (2005/2006)*
• *Call for Technical Advice
• *2004 GTO pump does not work

Mounts Factory OEM PS remote reservoir in Factory OEM location<

Maintains Corvette level of PS Pump belt wrap, approx. 135 degrees

What passenger side bracket works with this Alt/PS bracket?

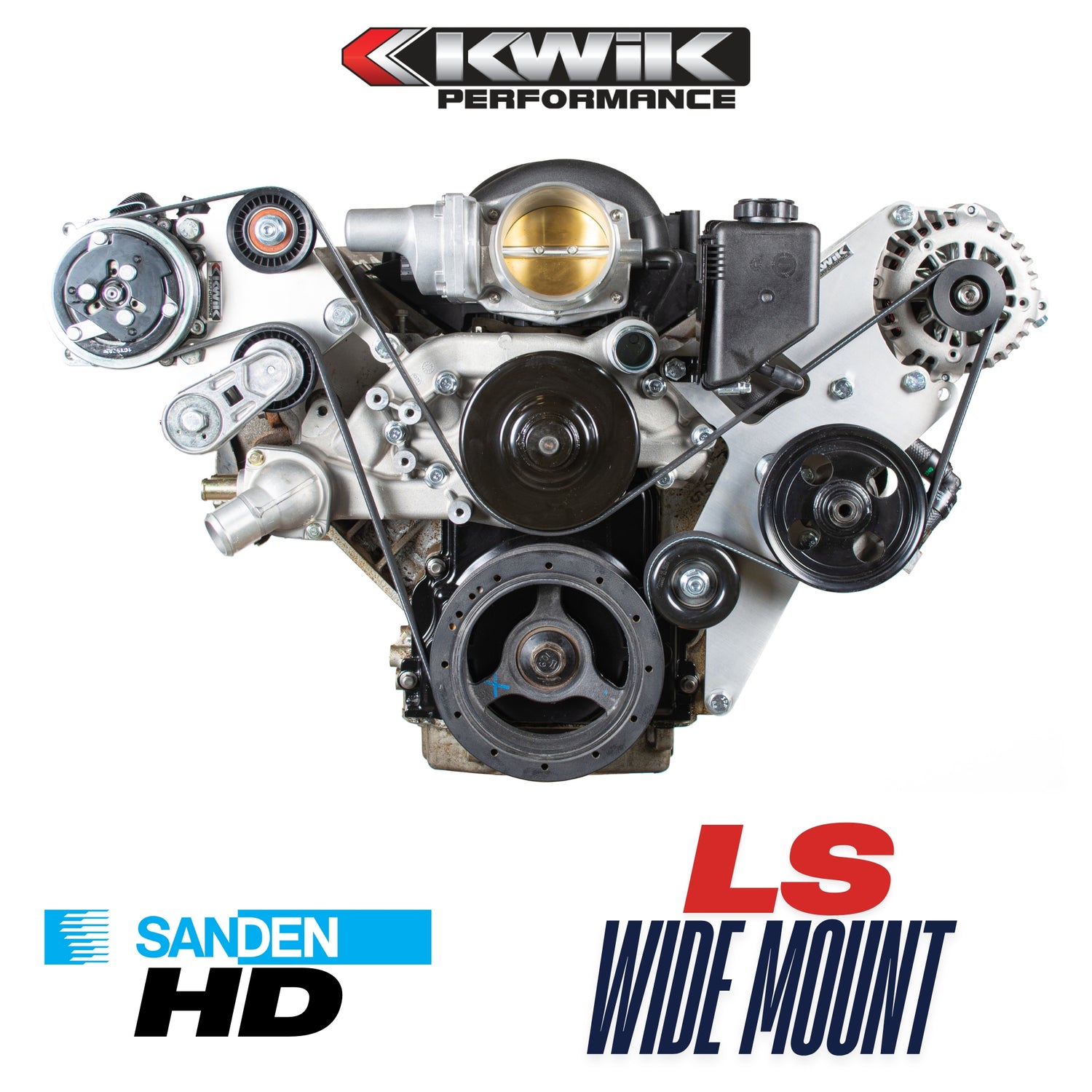

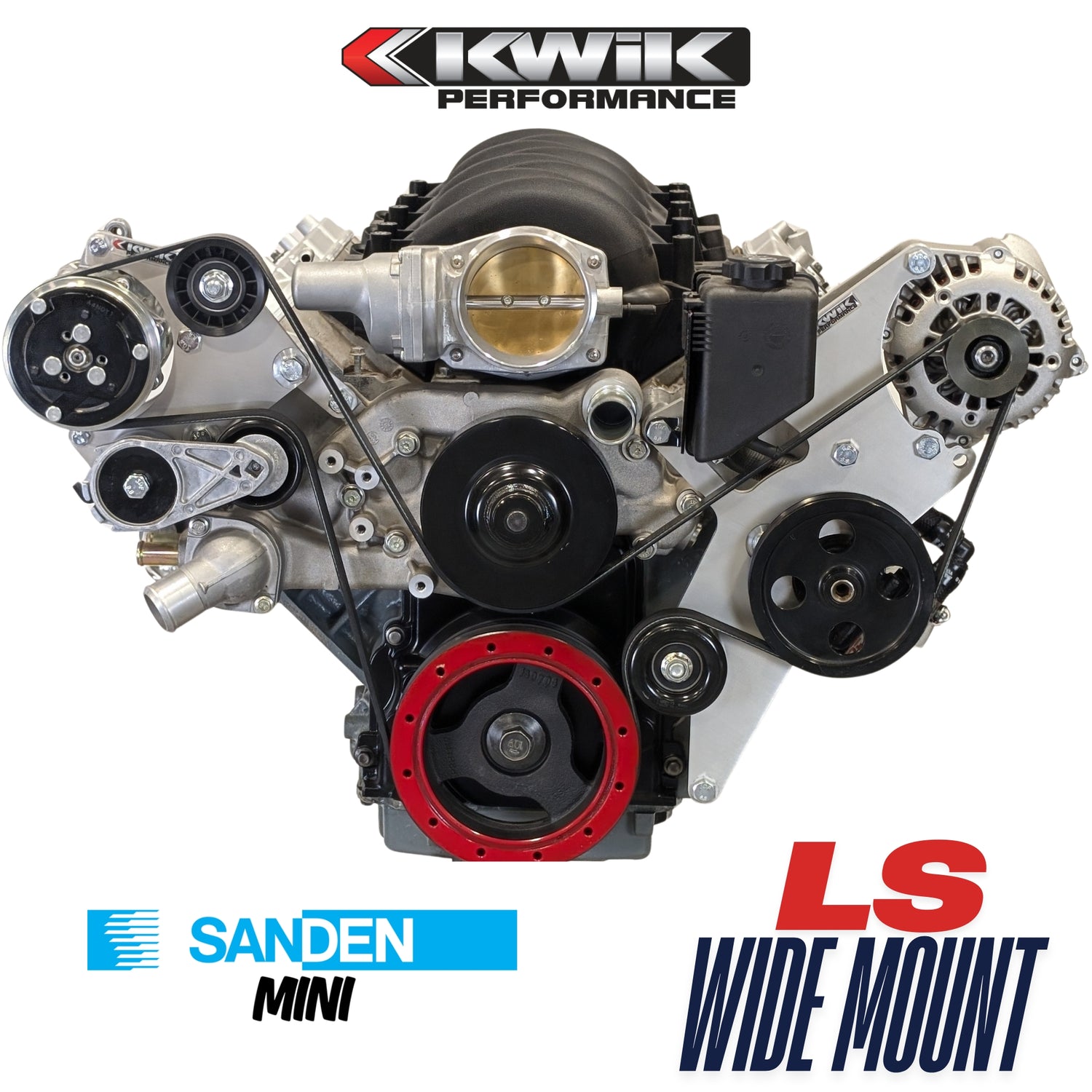

Teams up perfectly with our Wide Mount AC bracket K10470

Works with your OEM tensioner (mounted on water pump)

• Corvette (1999-2013)
• Cadillac CTS-V (2006-07, non-supercharged)
• Pontiac G8 (2009)
• Chevrolet SS (2013-17)
• Caprice PPV (2009-17)
• Holden Commodore (2009-17)
