Envío gratuito en pedidos superiores a $500 (solo en EE. UU. continental)

Kwik Performance Inc.  |  SKU: K10696

AC Hose Kit (94-95) OBS Chevy - GM R4 - K10696

$295.00 USD
Los gastos de envío se calcularán al momento de pagar.

Descripción

Bolt-on kit to connect GM R4 compressor on an LS truck engine to your OEM factory AC system

Connect to your factory AC system with new hoses designed specifically for 1994-95 OBS Chevy trucks (trucks with original R134 air conditioning systems and metric threaded fittings).

***For use with Kwik Performance AC bracket on LS truck engines using GM R4 AC compressor (requires use of vertical manifold fitting kit, Kwik part number 045024).

LS R4 compressor bracket:

  • K10623 Truck/LS3 Camaro spacing

Chevy OBS condenser guide

Instrucciones

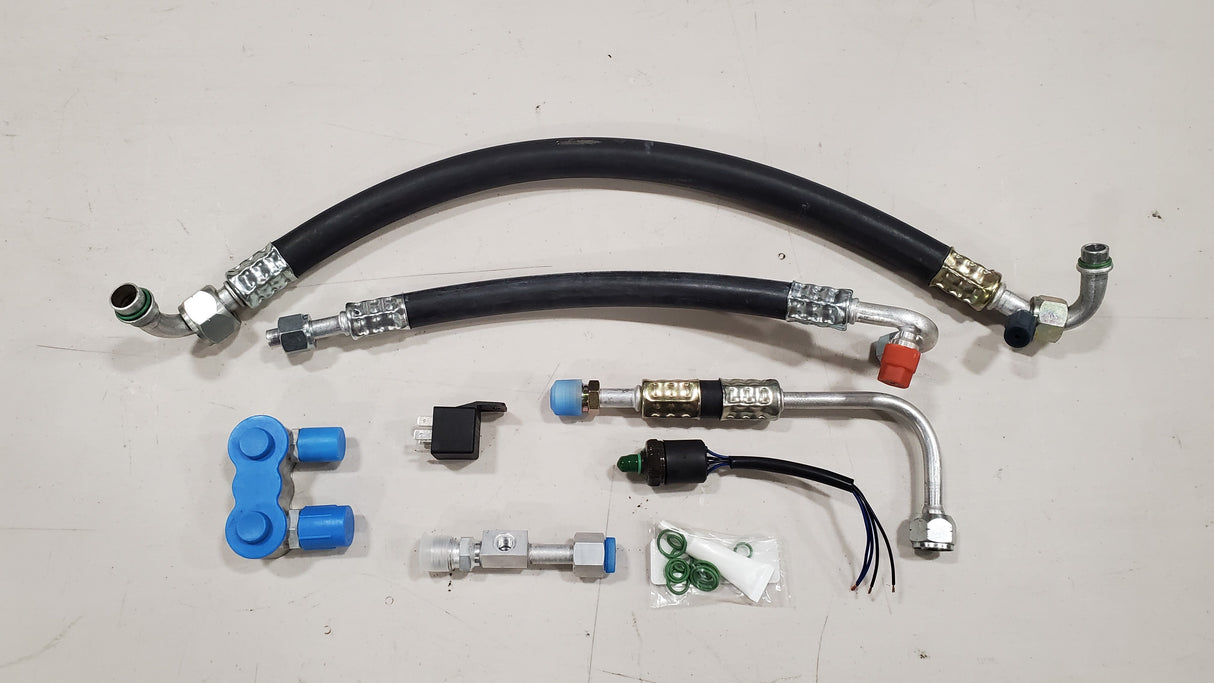

Hose kit includes:

#10 suction hose (1/2” ID, 1” OD)

  • 90 degree swivel from receiver/drier
  • 135 degree swivel with service port to compressor

#8 high pressure hose (13/32” ID, 29/32”OD)

-135 degree swivel with service port from compressor

-Straight swivel connects to safety switch fitting

-Safety switch fitting

-Safety switch (can be wired as binary or trinary)

-40 amp fan relay

-90 degree hardline connects safety switch fitting to condenser

-Vertical AC manifold, Kwik part number 045024

Other requirements:

GM R4 compressor with 6-groove serpentine pulley

Installation Instructions
