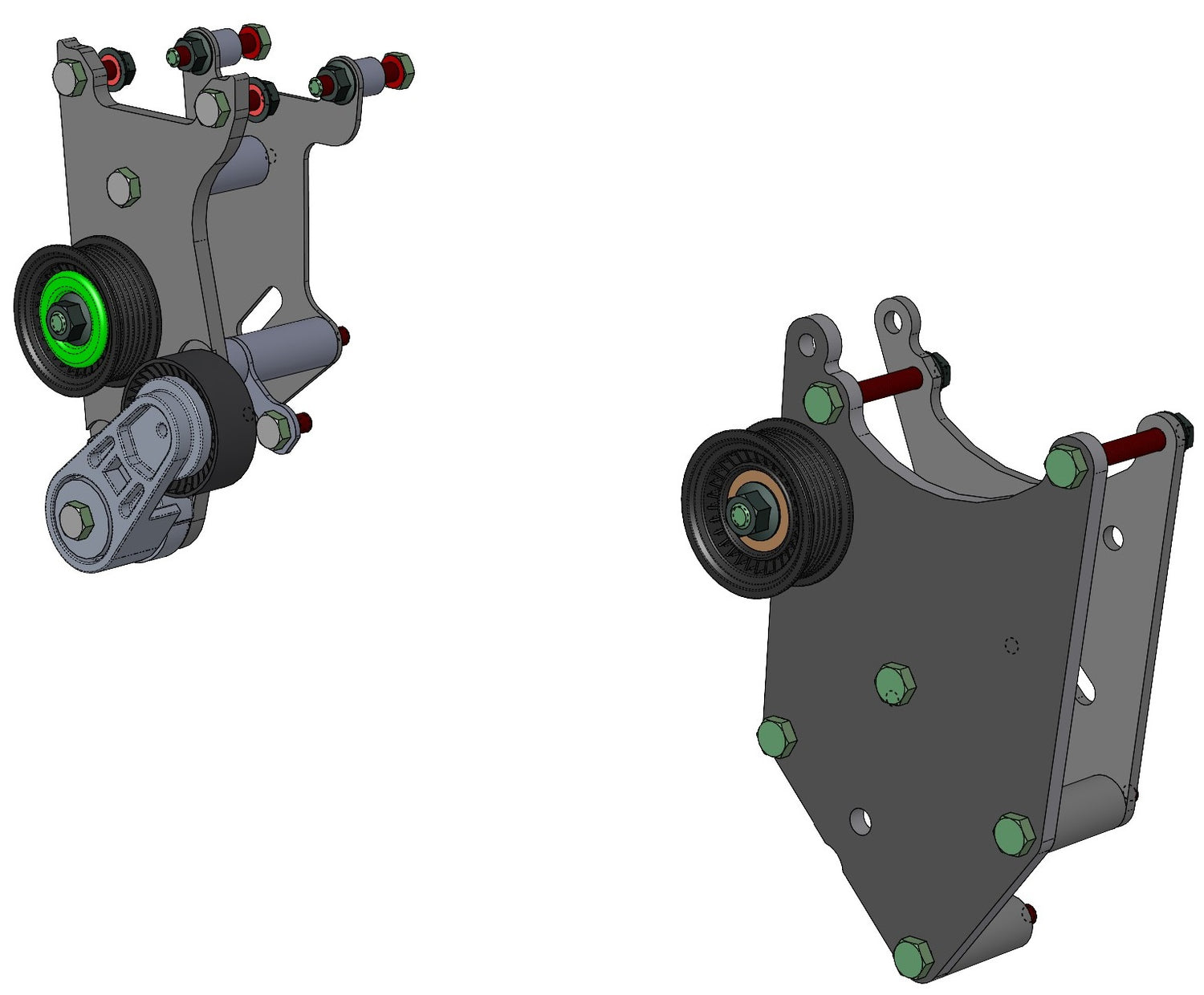

LS Street Rod AC-Alt Only Bracket - Corvette (97-13) -K10235

What's included:

Bracket made of 6061-T6 aircraft grade
aluminum (brushed satin finish)

All necessary spacers and zinc coated
fasteners

Automatic spring-style tensioner

Idler Pulley

What else is required to complete the
installation:

GM LS Gen 3 or 4 engine with Corvette
(1997-2013) harmonic balancer and water pump (or equivalent)*

Six-rib belt, See our included
installation instructions for suggested lengths and Gates part numbers. Alternator rating and PS pulley
diameters can change suggested lengths. Always check tensioner marks for
correct fitment.

Sanden SD7H15 AC compressor. We recommend the 709 over the 508
compressor for smoother operation and slightly more cooling capacity. (Kwik Performance PN
10300-01).

Any LS alternator (except LSA /
Cadillac CTS-V)

Consider our PowerMaster alternator: (Kwik Performance PN
48206).

DOES NOT work with driver side mounted
drive by wire throttle body

Solution: Passenger side mounted
(LS1/LS3) drive by wire throttle body

Solution: Top Mount drive by wire
throttle body (truck)

*Other engines with Corvette belt
spacing include: Most Chevrolet “crate” engines, Cadillac CTS-V (2006-07, non-supercharged), Pontiac G8 (2009), Chevrolet SS (2013-17), Caprice PPV (2009-17), Holden Commodore (2009-17).

LS Street Rod AC Instructions

LS Street Rod Alt Only Instructions

Gates Belt Chart (Part number and length)

Why you should use a Kwik Performance
product:

Properly engineered using OEM
reference drawings

Computer tested with FEA (finite
element analysis) software

Field tested on shop test engines and
in real-world test vehicles

Backed by a no-hassle warranty and
return policy

Tech support before, during and after
the sale
